Lagrangian particle tracks in Casco Bay

   A Lagrangian particle tracking routine uses the FVCOM velocity fields to produce
 model particle tracking. The images below show particle movement from different
 locations during May 2005 and Oct. 2004. Black numbers indicate starting positions,
 red numbers show where the particles ended. All particles are set to a fixed depth
 of 2 meters. The northeasterly of May 5-10, 2005 drove particles from the Kennebec
 outlet into inner Casco Bay. During the northeasterly of Oct. 20-27, 2004, when
 Kennebec discharge is much less than in May, penetration into inner Casco Bay
 did not occur.

  Click on the image to enlarge.

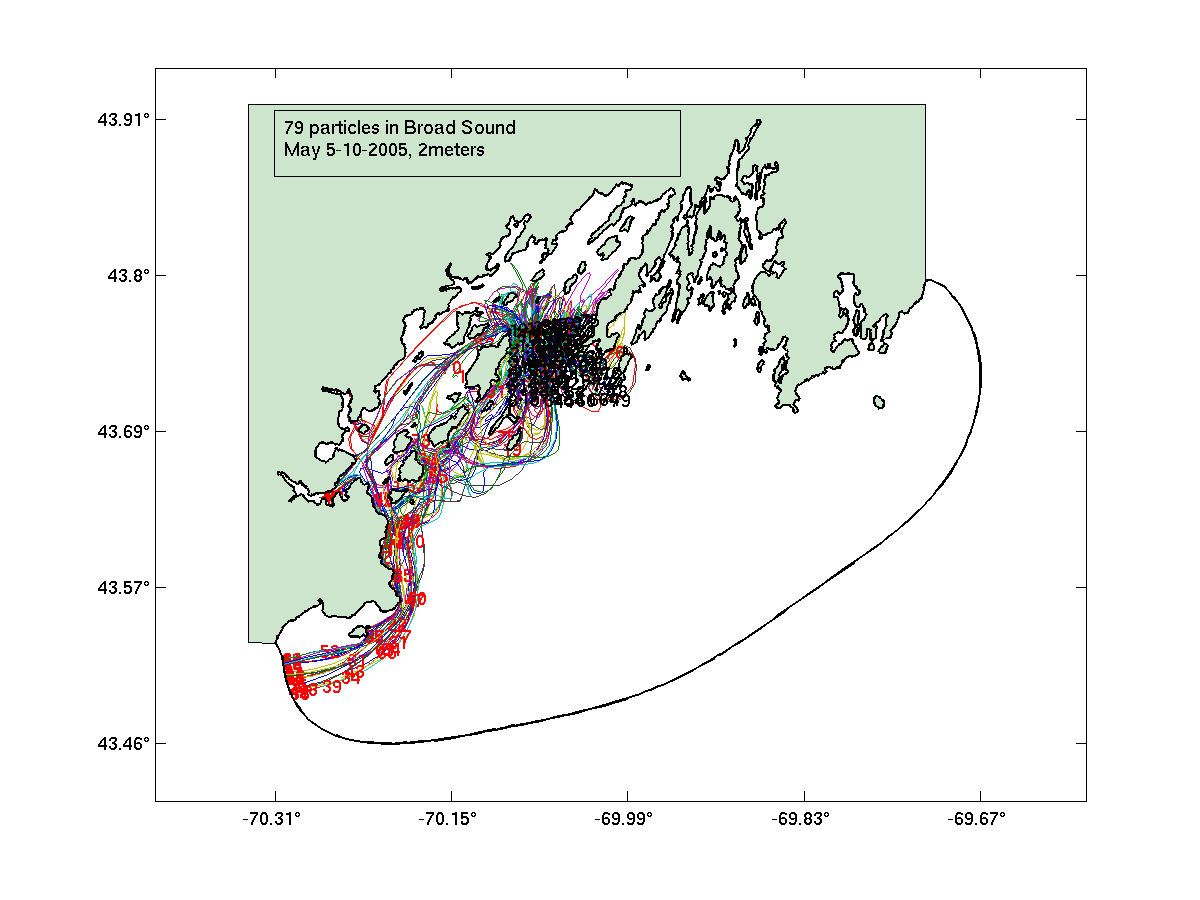

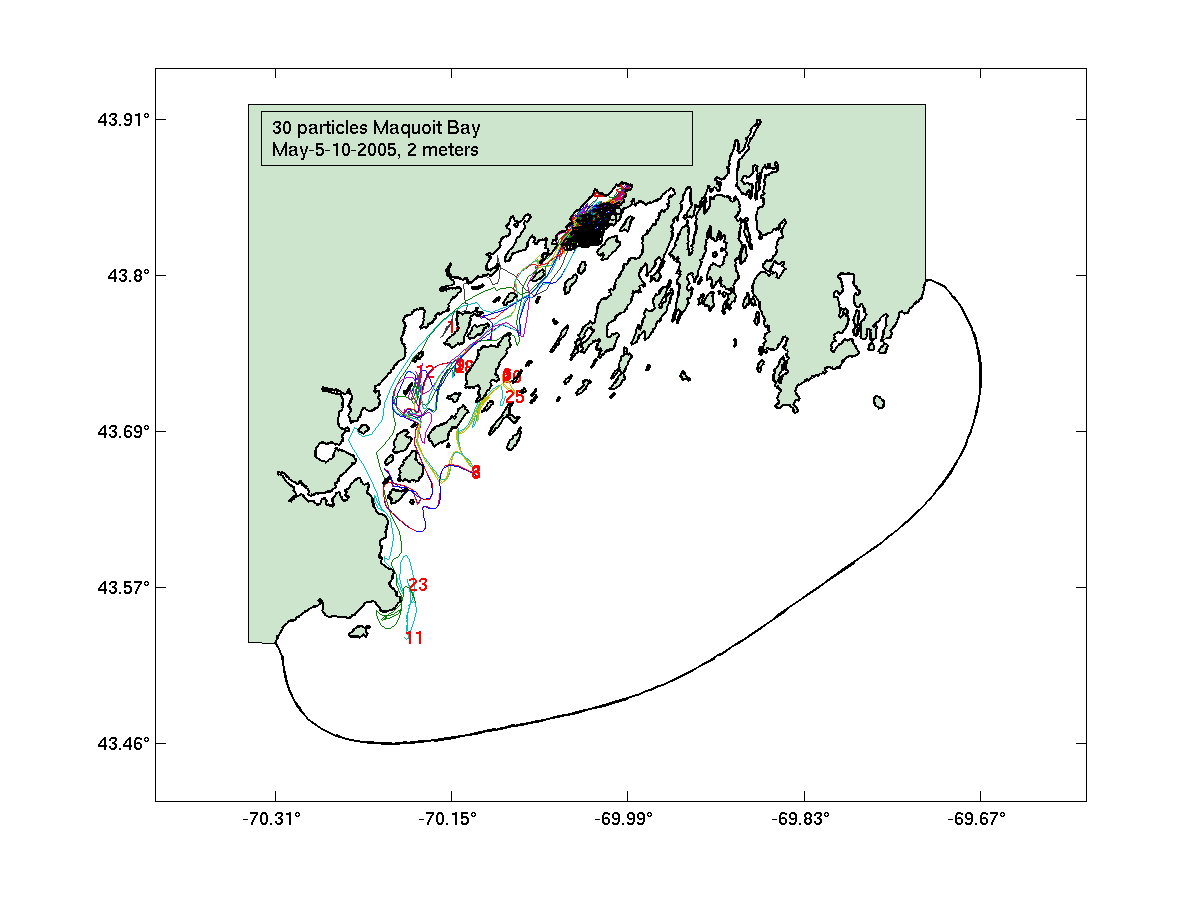

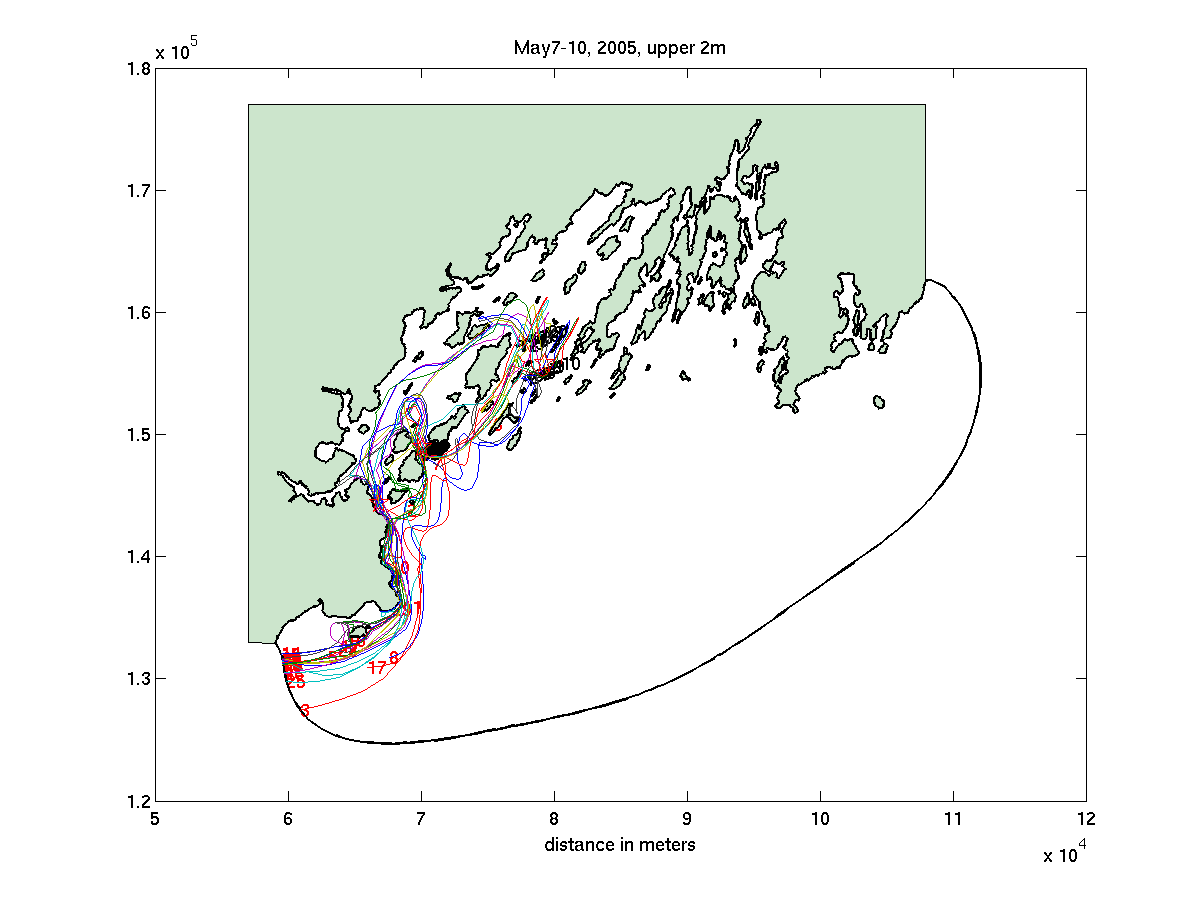

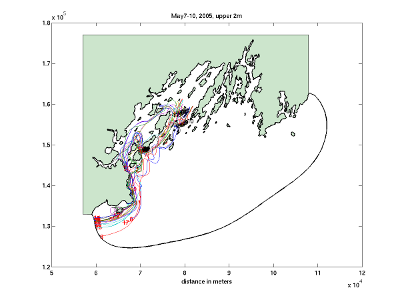

Hussey and Broad Sounds May 7-10, 2005	Broad Sound May 5-10, 2005	Maquoit Bay May 5-10, 2005

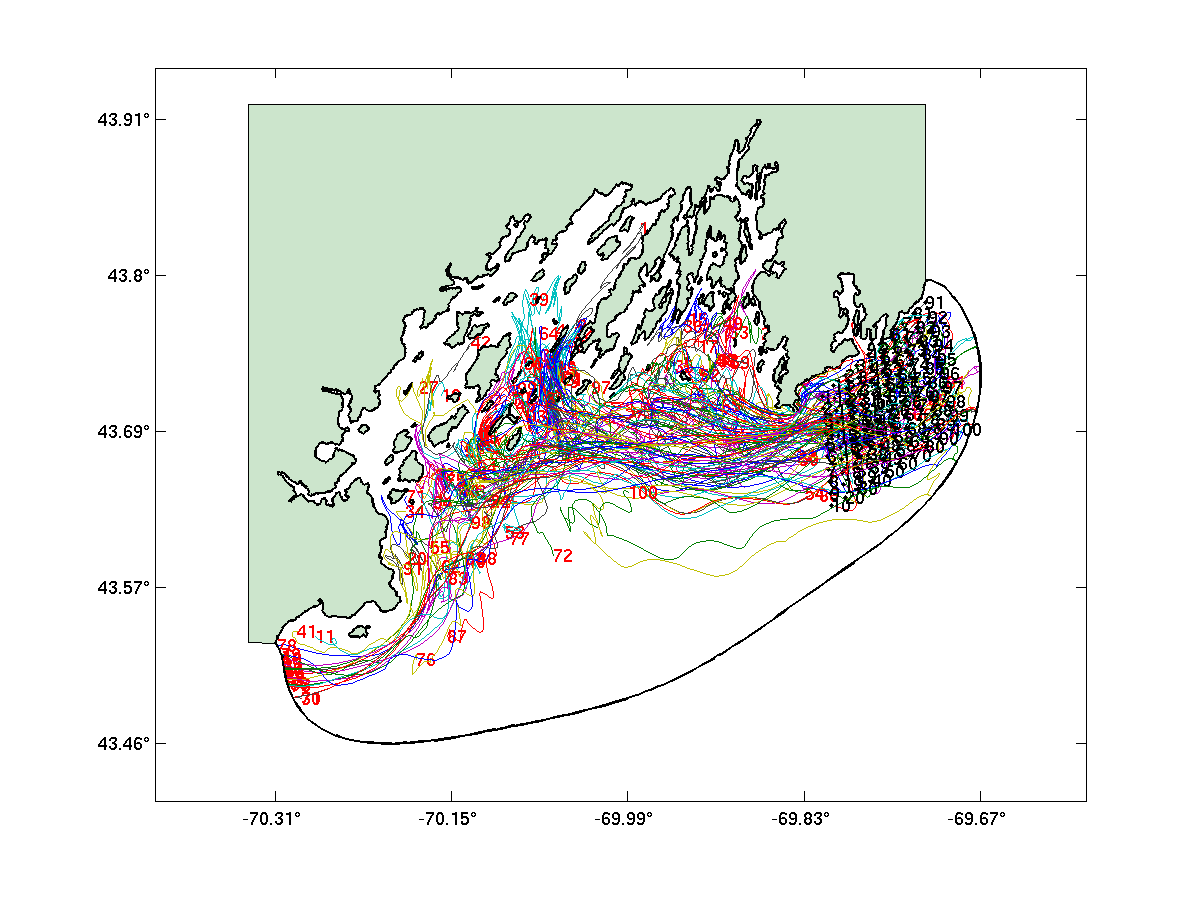

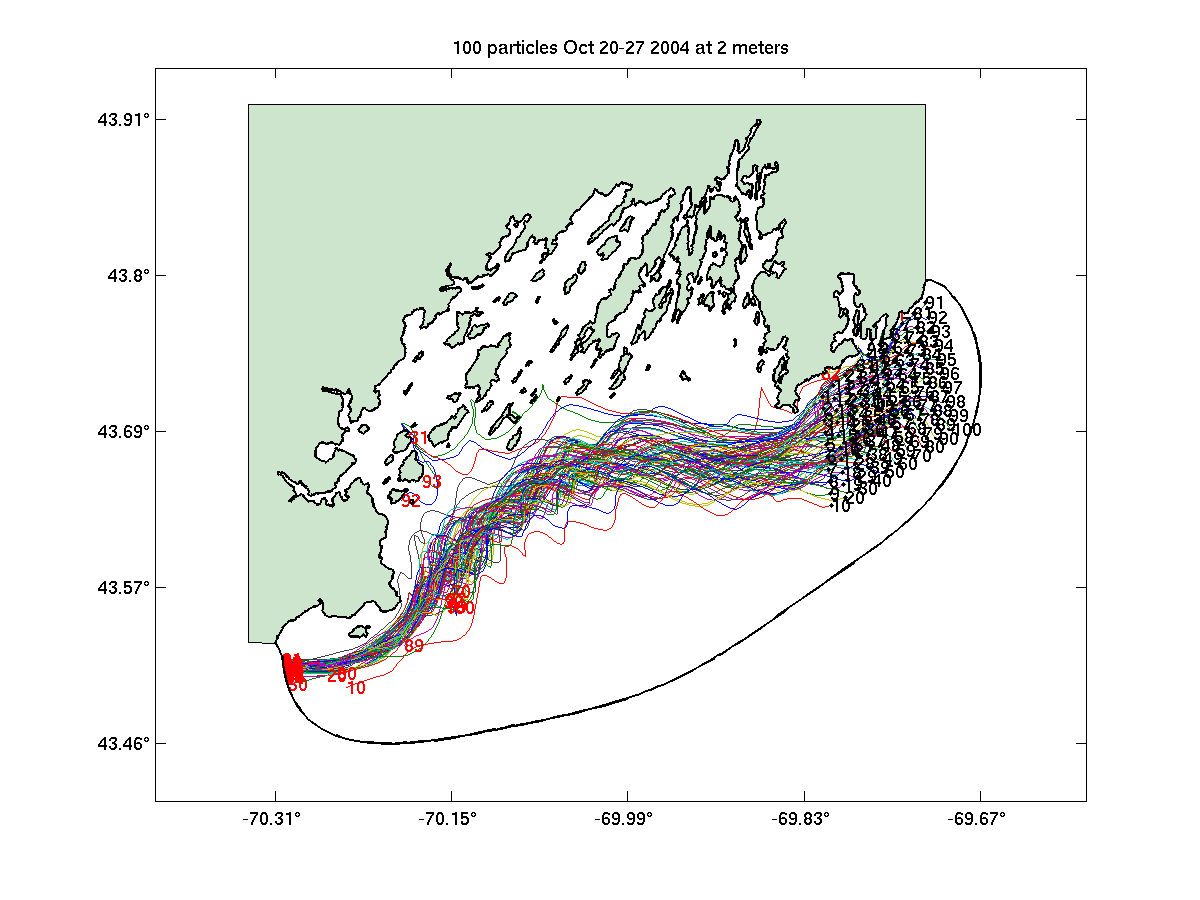

Kennebec-outlet May 5-10, 2005	Kennebec-outlet Oct 20-27, 2004
